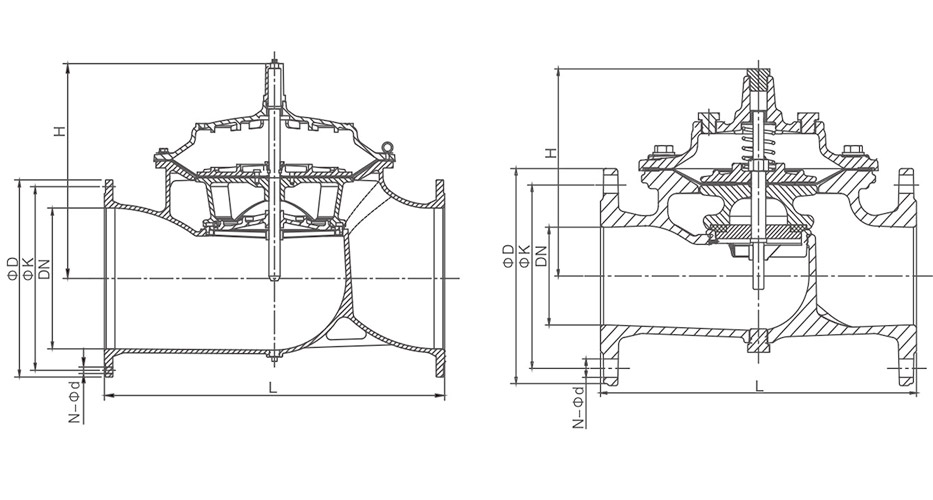

主要外形连接尺寸
|
DN |
L |
H |
ΦD |
ΦK |
N-Φd |
|||
|
PN10 |
PN16 |
PN10 |
PN16 |
PN10 |
PN16 |
|||
|
40 |
230 |
139 |
150 |
150 |
110 |
110 |
4-Φ19 |
4-Φ19 |
|
50 |
230 |
139 |
165 |
165 |
125 |
125 |
4-Φ19 |
4-Φ19 |
|
65 |
290 |
159 |
185 |
185 |
145 |
145 |
4-Φ19 |
4-Φ19 |
|
80 |
310 |
179 |
200 |
200 |
160 |
160 |
8-Φ19 |
8-Φ19 |
|
100 |
350 |
214 |
220 |
220 |
180 |
180 |
8-Φ19 |
8-Φ19 |
|
125 |
400 |
275 |
250 |
250 |
210 |
210 |
8-Φ19 |
8-Φ19 |
|
150 |
480 |
333 |
285 |
285 |
240 |
240 |
8-Φ23 |
8-Φ23 |
|
200 |
600 |
407 |
340 |
340 |
295 |
295 |
8-Φ23 |
12-Φ23 |
|
250 |
730 |
476 |
405 |
405 |
350 |
355 |
12-Φ23 |
12-Φ28 |
|
300 |
850 |
526 |
460 |
460 |
400 |
410 |
12-Φ23 |
12-Φ28 |
|
350 |
980 |
580 |
520 |
520 |
460 |
470 |
16-Φ23 |
16-Φ28 |
|
400 |
1100 |
670 |
580 |
580 |
515 |
525 |
16-Φ28 |
16-Φ31 |
|
500 |
1250 |
790 |
670 |
715 |
620 |
650 |
20-Φ28 |
20-Φ34 |
|
600 |
1450 |
930 |
780 |
840 |
725 |
770 |
20-Φ31 |
20-Φ37 |
